ROYPOW has developed an innovative Compact 2-in-1 Drive Motor Solution, integrating both motor and controller into a single unit for enhanced efficiency and simplified installation. ROYPOW’s innovative LiFePO4 technology powers both golf cart batteries and industrial forklift batteries, setting new standards for performance and safety.
High-Performance Motor Technology

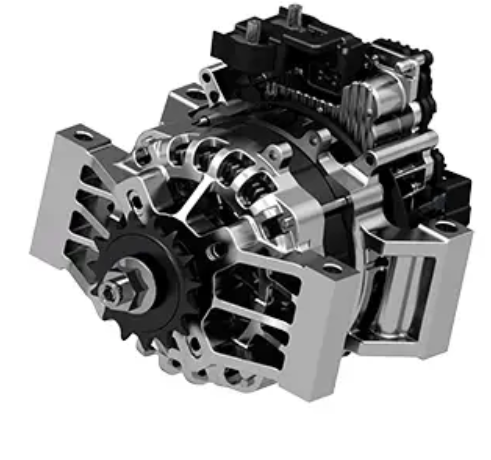

The ROYPOW BLM4815D features a high-speed motor capable of reaching 16,000 RPM, providing strong acceleration and improved gradability. Utilizing permanent magnets and 6-phase hair-pin winding technology, the motor achieves up to 85% overall efficiency, ensuring optimal energy utilization and extended driving range. The compact design does not compromise power, delivering 15 kW peak output and 60 Nm of torque, making it suitable for demanding applications.
User-Customizable Operation Modes
One of the standout features of this drive motor solution is its customizable performance settings. Users can adjust parameters such as maximum speed, acceleration rate, and regenerative braking intensity to match specific vehicle requirements. The system supports multiple control modes, including torque, speed, and regenerative braking, ensuring smooth operation across different driving conditions. CANBUS compatibility with protocols like CAN2.0B and J1939 allows seamless integration with vehicle management systems.
Robust Protection and Reliability
Built to automotive-grade standards, the BLM4815D incorporates comprehensive safety mechanisms, including thermal monitoring, voltage protection, and load dump prevention. The IP69K-rated inverter and IP25-rated motor ensure durability in harsh environments, while passive cooling maintains stable operation without additional cooling systems. The cast aluminum alloy housing provides structural integrity, and the simplified plug-and-play harness reduces installation time and complexity.
The Future of Mobility: ROYPOW’s Integrated Power Redefined
ROYPOW’s technology bridges leisure and industrial needs, delivering unmatched reliability for golf carts and forklift battery through intelligent, sustainable design.
